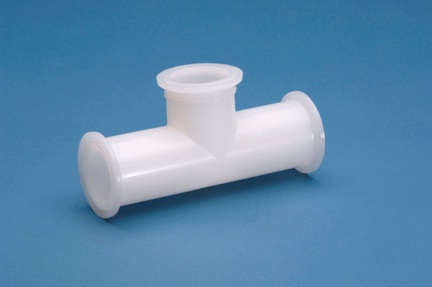

  • Sanitary Tee Connector, reduced branch length
  • Sizes: 3/4", 1", 1-1/2", 2", 2-1/2" and 3"
  • Available in polypropylene or PVDF materials
1 - 12 of 12 | Results Per Page | View | Unit of Measure
1

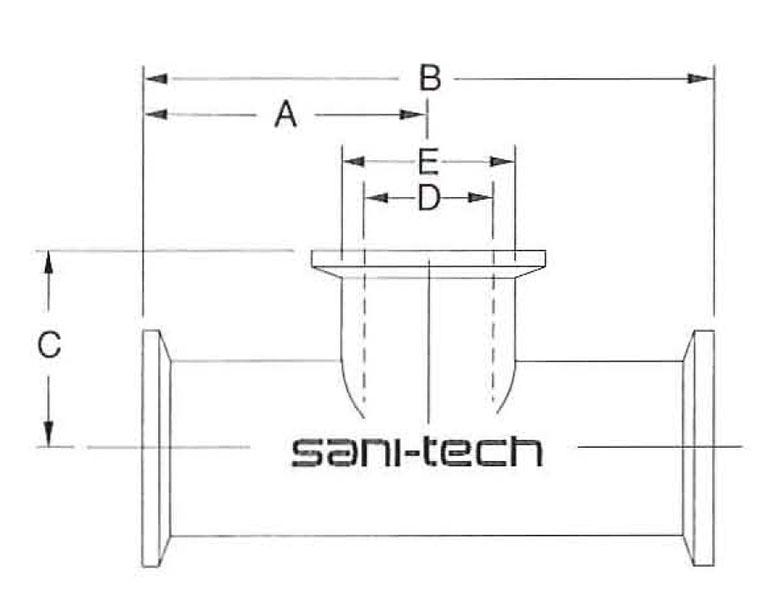

Item #

Size

A

B

C

D

Material

CAD

TSB075 N/A MINI N/A 2.620 in N/A 5.250 in N/A 1.630 in N/A 0.560 in N/A Polypropylene N/A CAD Icon (for items table)
TSB150 N/A 1 1/2 N/A 2.750 in N/A 5.500 in N/A 1.930 in N/A 1.356 in N/A Polypropylene N/A CAD Icon (for items table)
TSB200 N/A 2 N/A 3.44 in N/A 6.880 in N/A 2.180 in N/A 1.856 in N/A Polypropylene N/A CAD Icon (for items table)
TSB250 N/A 2 1/2 N/A 3.500 in N/A 7.000 in N/A 2.430 in N/A 2.356 in N/A Polypropylene N/A CAD Icon (for items table)
TSB300 N/A 3 N/A 3.750 in N/A 7.500 in N/A 2.680 in N/A 2.856 in N/A Polypropylene N/A CAD Icon (for items table)
TSB400 N/A 4 N/A 4.500 in N/A 9.000 in N/A 3.250 in N/A 3.810 in N/A Polypropylene N/A CAD Icon (for items table)
KSB075 N/A MINI N/A 2.620 in N/A 5.250 in N/A 1.630 in N/A 0.560 in N/A PVDF N/A CAD Icon (for items table)
KSB150 N/A 1 1/2 N/A 2.750 in N/A 5.500 in N/A 1.930 in N/A 1.356 in N/A PVDF N/A CAD Icon (for items table)
KSB200 N/A 2 N/A 3.500 in N/A 6.880 in N/A 2.180 in N/A 1.856 in N/A PVDF N/A CAD Icon (for items table)
KSB250 N/A 2 1/2 N/A 3.500 in N/A 7.000 in N/A 2.430 in N/A 2.356 in N/A PVDF N/A CAD Icon (for items table)
KSB300 N/A 3 N/A 3.750 in N/A 7.500 in N/A 2.680 in N/A 2.856 in N/A PVDF N/A CAD Icon (for items table)
KSB400 N/A 4 N/A 4.500 in N/A 9.000 in N/A 3.250 in N/A 3.810 in N/A PVDF N/A CAD Icon (for items table)
