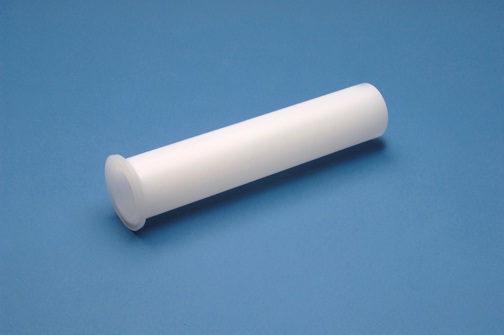

  • Connects SIB fusion pipe or components to a sanitary flange end
  • Available in polypropylene or PVDF materials
  • Sizes: 3/4", 1", 1-1/2", 2", 2-1/2" and 3"
  • Utilize the SIB fusion system to connect to pipe ends
1 - 16 of 16 | Results Per Page | View | Unit of Measure
1

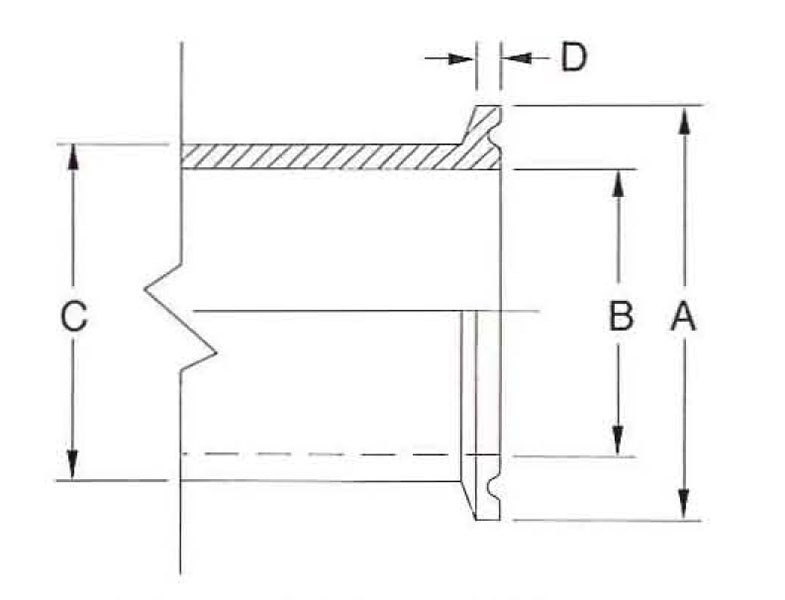

Item #

Size

A

B

C

D

Material

CAD

STAD075 N/A MINI N/A 0.992 in N/A 0.560 in N/A 0.750 in N/A 0.143 in N/A Polypropylene N/A CAD Icon (for items table)
STAD100 N/A MAXI N/A 1.500 in N/A 0.856 in N/A 1.106 in N/A 0.112 in N/A Polypropylene N/A CAD Icon (for items table)
STAD100L N/A 1 LADISH N/A 1.984 in N/A 0.856 in N/A 1.106 in N/A 0.112 in N/A Polypropylene N/A CAD Icon (for items table)
STAD150 N/A 1 1/2 N/A 1.984 in N/A 1.356 in N/A 1.606 in N/A 0.112 in N/A Polypropylene N/A CAD Icon (for items table)
STAD200 N/A 2 N/A 2.516 in N/A 1.856 in N/A 2.106 in N/A 0.112 in N/A Polypropylene N/A CAD Icon (for items table)
STAD250 N/A 2 1/2 N/A 3.047 in N/A 2.356 in N/A 2.606 in N/A 0.112 in N/A Polypropylene N/A CAD Icon (for items table)
STAD300 N/A 3 N/A 3.579 in N/A 2.856 in N/A 3.106 in N/A 0.112 in N/A Polypropylene N/A CAD Icon (for items table)
STAD400 N/A 4 N/A 4.682 in N/A 3.810 in N/A 4.060 in N/A 0.112 in N/A Polypropylene N/A CAD Icon (for items table)
SKAD075 N/A MINI N/A 0.992 in N/A 0.560 in N/A 0.750 in N/A 0.143 in N/A PVDF N/A CAD Icon (for items table)
SKAD100 N/A MAXI N/A 1.500 in N/A 0.856 in N/A 1.106 in N/A 0.112 in N/A PVDF N/A CAD Icon (for items table)
SKAD100L N/A 1 LADISH N/A 1.984 in N/A 0.856 in N/A 1.106 in N/A 0.112 in N/A PVDF N/A CAD Icon (for items table)
SKAD150 N/A 1 1/2 N/A 1.984 in N/A 1.356 in N/A 1.606 in N/A 0.112 in N/A PVDF N/A CAD Icon (for items table)
SKAD200 N/A 2 N/A 2.516 in N/A 1.856 in N/A 2.106 in N/A 0.112 in N/A PVDF N/A CAD Icon (for items table)
SKAD250 N/A 2 1/2 N/A 3.047 in N/A 2.356 in N/A 2.606 in N/A 0.112 in N/A PVDF N/A CAD Icon (for items table)
SKAD300 N/A 3 N/A 3.579 in N/A 2.856 in N/A 3.106 in N/A 0.112 in N/A PVDF N/A CAD Icon (for items table)
SKAD400 N/A 4 N/A 4.682 in N/A 3.810 in N/A 4.060 in N/A 0.112 in N/A PVDF N/A CAD Icon (for items table)
