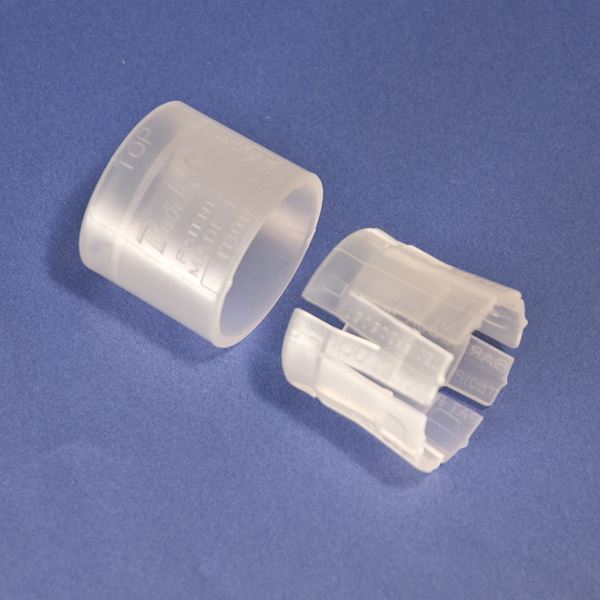

Pure Fit® SIB® Retainers – AL On Saint-Gobain Performance Plastics

Saint-Gobain Life Sciences

Global industry-leading manufacturer of high-performance, innovative solutions and components across a wide range of industries.

Serving Biopharm and Cell Therapy

Industry-leading provider of material science-based solutions in the biopharmaceutical and cell therapy markets for single-use fluid management.

Medical Markets - Hospital patient and doctor

Medical Components and Custom Solutions

We provide custom components and engineered systems for the medical device industry, including critical parts where precision enables superior performance.

Semiconductor component - electronics application

Electronics and Semiconductor Industry Solutions

Design and manufacture a complete line of ultra-high purity, fluoropolymer-based fluid handling components and solutions for the electronics and semiconductor markets.

Woman drinking soda - food and beverage market

Industrial & Consumer Solutions (ICS)

Superior engineering and customer support to achieve safety, performance, and regulatory compliance across a broad range of capabilities. Offerings include Tygon® Tubing and Accessories, Hoses and Fittings, Heat Shrink Tubing, and High-Performance Seals.

Sensors Flow Measurement Solutions

Playing an essential role in preventing cross-contamination, validating essential processes, and driving cost savings, we specialize in the development and production of high-quality single-use flow sensors and corresponding equipment.

Item #	ID	C	Material	Max. Working Pressure at 72°F (22.2°C)	Max. Working Pressure at 200°F (93.3°C)
PF135062PPAF-AL	N/A 1/16 in1.60 mm	N/A 0.82 in20.8 mm	N/A Polypropylene	N/A 250 psi	N/A 100 psi
PF135125PPAF-AL	N/A 1/18 in3.20 mm	N/A 0.89 in22.6 mm	N/A Polypropylene	N/A 250 psi	N/A 100 psi
PF135187PPAF-AL	N/A 3/16 in4.80 mm	N/A 1.09 in27.7 mm	N/A Polypropylene	N/A 250 psi	N/A 100 psi
PF135312PPAF-AL	N/A 5/16 in8.00 mm	N/A 1.31 in33.3 mm	N/A Polypropylene	N/A 250 psi	N/A 100 psi
PF135750PPAF-AL	N/A 3/4 in19.10 mm	N/A 2.85 in72.4 mm	N/A Polypropylene	N/A 250 psi	N/A 100 psi
PF135062PVDF-AL	N/A 1/16 in1.60 mm	N/A 0.82 in20.8 mm	N/A PVDF	N/A 250 psi	N/A 100 psi
PF135125PVDF-AL	N/A 1/18 in3.20 mm	N/A 0.89 in22.6 mm	N/A PVDF	N/A 250 psi	N/A 100 psi
PF135187PVDF-AL	N/A 3/16 in4.80 mm	N/A 1.09 in27.7 mm	N/A PVDF	N/A 250 psi	N/A 100 psi
PF135312PVDF-AL	N/A 5/16 in8.00 mm	N/A 1.31 in33.3 mm	N/A PVDF	N/A 250 psi	N/A 100 psi
PF135750PVDF-AL	N/A 3/4 in19.10 mm	N/A 2.85 in72.4 mm	N/A PVDF	N/A 250 psi	N/A 100 psi
PF135250PPAF	N/A 1/4 in6.40 mm	N/A 1.17 in29.7 mm	N/A Polypropylene	N/A 250 psi	N/A 100 psi
PF135375PPAF	N/A 3/8 in9.50 mm	N/A 1.63 in41.4 mm	N/A Polypropylene	N/A 250 psi	N/A 100 psi
PF135500PPAF	N/A 1/2 in12.7 mm	N/A 1.93 in49.0 mm	N/A Polypropylene	N/A 250 psi	N/A 100 psi
PF135250PVDF	N/A 1/4 in6.40 mm	N/A 1.17 in29.68 mm	N/A PVDF	N/A 250 psi	N/A 100 psi
PF135375PVDF	N/A 3/8 in9.50 mm	N/A 1.63 in41.42 mm	N/A PVDF	N/A 250 psi	N/A 100 psi
PF135500PVDF	N/A 1/2 in12.7 mm	N/A 1.93 in49.03 mm	N/A PVDF	N/A 250 psi	N/A 100 psi

N/A 0.82 in20.8 mm

N/A Polypropylene

N/A 250 psi

N/A 100 psi

PF135125PPAF-AL

N/A 1/18 in3.20 mm

N/A 0.89 in22.6 mm

N/A Polypropylene

N/A 250 psi

N/A 100 psi

PF135187PPAF-AL

N/A 3/16 in4.80 mm

N/A 1.09 in27.7 mm

N/A Polypropylene

N/A 250 psi

N/A 100 psi

PF135312PPAF-AL

N/A 5/16 in8.00 mm

N/A 1.31 in33.3 mm

N/A Polypropylene

N/A 250 psi

N/A 100 psi

PF135750PPAF-AL

N/A 3/4 in19.10 mm

N/A 2.85 in72.4 mm

N/A Polypropylene

N/A 250 psi

N/A 100 psi

PF135062PVDF-AL

N/A 1/16 in1.60 mm

N/A 0.82 in20.8 mm

N/A PVDF

N/A 250 psi

N/A 100 psi

PF135125PVDF-AL

N/A 1/18 in3.20 mm

N/A 0.89 in22.6 mm

N/A PVDF

N/A 250 psi

N/A 100 psi

PF135187PVDF-AL

N/A 3/16 in4.80 mm

N/A 1.09 in27.7 mm

N/A PVDF

N/A 250 psi

N/A 100 psi

PF135312PVDF-AL

N/A 5/16 in8.00 mm

N/A 1.31 in33.3 mm

N/A PVDF

N/A 250 psi

N/A 100 psi

PF135750PVDF-AL

N/A 3/4 in19.10 mm

N/A 2.85 in72.4 mm

N/A PVDF

N/A 250 psi

N/A 100 psi

PF135250PPAF

N/A 1/4 in6.40 mm

N/A 1.17 in29.7 mm

N/A Polypropylene

N/A 250 psi

N/A 100 psi

PF135375PPAF

N/A 3/8 in9.50 mm

N/A 1.63 in41.4 mm

N/A Polypropylene

N/A 250 psi

N/A 100 psi

PF135500PPAF

N/A 1/2 in12.7 mm

N/A 1.93 in49.0 mm

N/A Polypropylene

N/A 250 psi

N/A 100 psi

PF135250PVDF

N/A 1/4 in6.40 mm

N/A 1.17 in29.68 mm

N/A PVDF

N/A 250 psi

N/A 100 psi

PF135375PVDF

N/A 3/8 in9.50 mm

N/A 1.63 in41.42 mm

N/A PVDF

N/A 250 psi

N/A 100 psi

PF135500PVDF

N/A 1/2 in12.7 mm

N/A 1.93 in49.03 mm

N/A PVDF

N/A 250 psi

N/A 100 psi
