Sani-Pro® Tubing
Sani-Tech® Tubing and Fittings
- Available in natural polypropylene or PVDF materials
- Sizes: 3/4", 1", 1-1/2", 2", 2-1/2" and 3" in 20' lengths
- Utilize the SIB fusion system to connect to pipe ends
- Full lot traceability

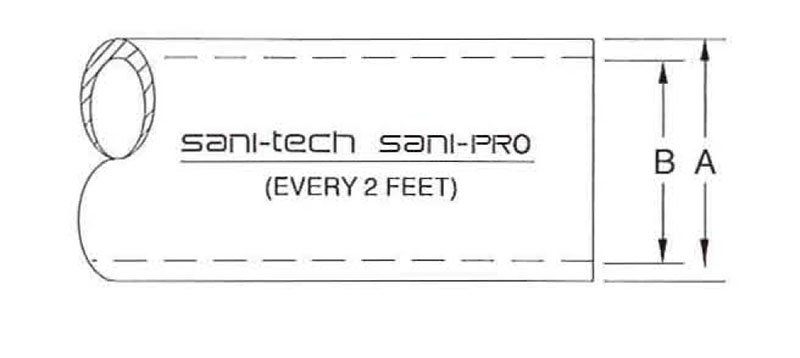

Item # |
Size |
A |
B |
Wall/Ref. |
OD Circularity |
Material |
CAD |
|---|---|---|---|---|---|---|---|
| T075 | Size N/A MINI | A N/A 0.750 in | B N/A 0.564 in | Wall/Ref. N/A 0.093 in | OD Circularity N/A 0.003 in | Material N/A Polypropylene |
CAD
N/A
|
| T100 | Size N/A MAXI | A N/A 1.106 in | B N/A 0.856 in | Wall/Ref. N/A 0.125 in | OD Circularity N/A 0.008 in | Material N/A Polypropylene |
CAD
N/A
|
| T150 | Size N/A 1 1/2 | A N/A 1.606 in | B N/A 1.356 in | Wall/Ref. N/A 0.125 in | OD Circularity N/A 0.008 in | Material N/A Polypropylene |
CAD
N/A
|
| T200 | Size N/A 2 | A N/A 2.106 in | B N/A 1.856 in | Wall/Ref. N/A 0.125 in | OD Circularity N/A 0.008 in | Material N/A Polypropylene |
CAD
N/A
|
| T250 | Size N/A 2 1/2 | A N/A 2.606 in | B N/A 2.356 in | Wall/Ref. N/A 0.125 in | OD Circularity N/A 0.010 in | Material N/A Polypropylene |
CAD
N/A
|
| T300 | Size N/A 3 | A N/A 3.106 in | B N/A 2.856 in | Wall/Ref. N/A 0.125 in | OD Circularity N/A 0.010 in | Material N/A Polypropylene |
CAD
N/A
|
| T400 | Size N/A 4 | A N/A 4.060 in | B N/A 3.810 in | Wall/Ref. N/A 0.125 in | OD Circularity N/A 0.010 in | Material N/A Polypropylene |
CAD
N/A
|
| K075 | Size N/A MINI | A N/A 0.750 in | B N/A 0.564 in | Wall/Ref. N/A 0.093 in | OD Circularity N/A 0.003 in | Material N/A PVDF |
CAD
N/A
|
| K100 | Size N/A MAXI | A N/A 1.106 in | B N/A 0.856 in | Wall/Ref. N/A 0.125 in | OD Circularity N/A 0.008 in | Material N/A PVDF |
CAD
N/A
|
| K150 | Size N/A 1 1/2 | A N/A 1.606 in | B N/A 1.356 in | Wall/Ref. N/A 0.125 in | OD Circularity N/A 0.008 in | Material N/A PVDF |
CAD
N/A
|
| K200 | Size N/A 2 | A N/A 2.106 in | B N/A 1.856 in | Wall/Ref. N/A 0.125 in | OD Circularity N/A 0.008 in | Material N/A PVDF |
CAD
N/A
|
| K250 | Size N/A 2 1/2 | A N/A 2.606 in | B N/A 2.356 in | Wall/Ref. N/A 0.125 in | OD Circularity N/A 0.010 in | Material N/A PVDF |
CAD
N/A
|
| K300 | Size N/A 3 | A N/A 3.106 in | B N/A 2.856 in | Wall/Ref. N/A 0.125 in | OD Circularity N/A 0.010 in | Material N/A PVDF |
CAD
N/A
|
| K400 | Size N/A 4 | A N/A 4.060 in | B N/A 3.810 in | Wall/Ref. N/A 0.125 in | OD Circularity N/A 0.010 in | Material N/A PVDF |
CAD
N/A
|
