  • Sani-Tech® 90° Elbow.jpg

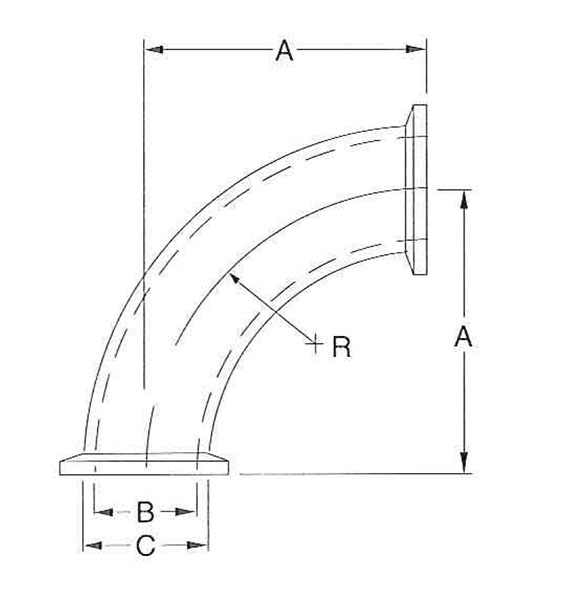

  • 90° Elbow-2
  • Sanitary x Sanitary Elbow allows for smooth bend transition
  • Sizes: 3/4", 1", 1-1/2", 2", 2-1/2" and 3"
  • Available in polypropylene or PVDF materials
1 - 14 of 14 | Results Per Page | View | Unit of Measure
1
Compare Items Add to CAD Cart

Item #

Size

A

B

C

R

Material

CAD

N/A MINI N/A 2.5 in N/A 0.560 in N/A 0.750 in N/A 2.500 in N/A Polypropylene N/A CAD Icon (for items table)
N/A MAXI N/A 2.5 in N/A 0.856 in N/A 1.106 in N/A 2.500 in N/A Polypropylene N/A CAD Icon (for items table)
N/A LADISH N/A 2.5 in N/A 0.856 in N/A 1.106 in N/A 2.500 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 1 1/2 N/A 2.750 in N/A 1.356 in N/A 1.606 in N/A 2.750 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 2 N/A 3.500 in N/A 1.856 in N/A 2.106 in N/A 3.500 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 2 1/2 N/A 4.250 in N/A 2.356 in N/A 2.606 in N/A 4.250 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 3 N/A 5.000 in N/A 2.856 in N/A 3.106 in N/A 5.000 in N/A Polypropylene N/A CAD Icon (for items table)
N/A MINI N/A 2.5 in N/A 0.560 in N/A 0.750 in N/A 2.500 in N/A PVDF N/A CAD Icon (for items table)
N/A MAXI N/A 2.5 in N/A 0.856 in N/A 1.106 in N/A 2.500 in N/A PVDF N/A CAD Icon (for items table)
N/A LADISH N/A 2.5 in N/A 0.856 in N/A 1.106 in N/A 2.500 in N/A PVDF N/A CAD Icon (for items table)
N/A 1 1/2 N/A 2.750 in N/A 1.356 in N/A 1.606 in N/A 2.750 in N/A PVDF N/A CAD Icon (for items table)
N/A 2 N/A 3.500 in N/A 1.856 in N/A 2.106 in N/A 3.500 in N/A PVDF N/A CAD Icon (for items table)
N/A 2 1/2 N/A 4.250 in N/A 2.356 in N/A 2.606 in N/A 4.250 in N/A PVDF N/A CAD Icon (for items table)
N/A 3 N/A 5.000 in N/A 2.856 in N/A 3.106 in N/A 5.000 in N/A PVDF N/A CAD Icon (for items table)
