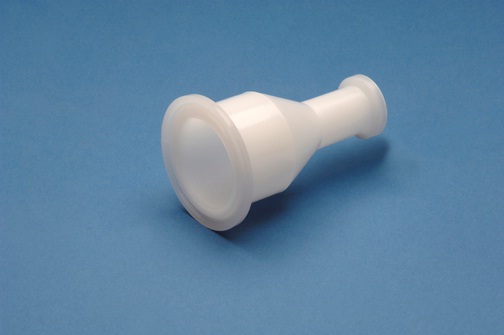

  • Sani-Tech® Concentric Reducer.jpg
  • Concentric Reducer-2
  • Sanitary Reducing connector, Concentric
  • Sizes: 3/4", 1", 1-1/2", 2", 2-1/2" and 3"
  • Available in polypropylene or PVDF materials
1 - 25 of 42 | Results Per Page | View | Unit of Measure
1 2
Compare Items Search by Specification Add to CAD Cart

Item #

Reducers

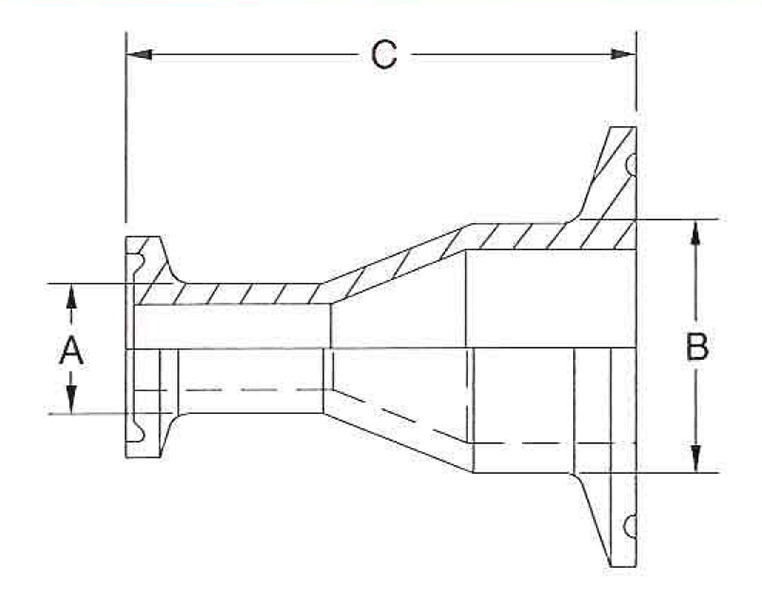

A

B

C

Material

CAD

N/A MINI x MAXI N/A 0.750 in N/A 1.106 in N/A 3.000 in N/A Polypropylene N/A CAD Icon (for items table)
N/A MINI x 1 LADISH N/A 0.750 in N/A 1.106 in N/A 3.000 in N/A Polypropylene N/A CAD Icon (for items table)
N/A MINI x 1 1/2 N/A 0.750 in N/A 1.606 in N/A 3.000 in N/A Polypropylene N/A CAD Icon (for items table)
N/A MINI x 2 N/A 0.750 in N/A 2.106 in N/A 3.000 in N/A Polypropylene N/A CAD Icon (for items table)
N/A MINI x 2 1/2 N/A 0.750 in N/A 2.606 in N/A 3.000 in N/A Polypropylene N/A CAD Icon (for items table)
N/A MINI x 3 N/A 0.750 in N/A 3.106 in N/A 3.000 in N/A Polypropylene N/A CAD Icon (for items table)
N/A MAXI x 1 LADISH N/A 1.106 in N/A 1.106 in N/A 3.000 in N/A Polypropylene N/A CAD Icon (for items table)
N/A MAXI x 1 1/2 N/A 1.106 in N/A 1.606 in N/A 3.000 in N/A Polypropylene N/A CAD Icon (for items table)
N/A MAXI x 2 N/A 1.106 in N/A 2.106 in N/A 3.000 in N/A Polypropylene N/A CAD Icon (for items table)
N/A MAXI x 2 1/2 N/A 1.106 in N/A 2.606 in N/A 3.000 in N/A Polypropylene N/A CAD Icon (for items table)
N/A MAXI x 3 N/A 1.106 in N/A 3.106 in N/A 3.000 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 1 LADISH x 1 1/2 N/A 1.106 in N/A 1.606 in N/A 3.000 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 1 LADISH x 2 N/A 1.106 in N/A 2.106 in N/A 3.000 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 1 LADISH x 2 1/2 N/A 1.106 in N/A 2.606 in N/A 3.000 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 1 LADISH x 3 N/A 1.106 in N/A 3.106 in N/A 3.000 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 1 1/2 x 2 N/A 1.606 in N/A 2.106 in N/A 3.000 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 1 1/2 x 2 1/2 N/A 1.606 in N/A 2.606 in N/A 3.000 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 1 1/2 x 3 N/A 1.606 in N/A 3.106 in N/A 3.000 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 2 x 2 1/2 N/A 2.106 in N/A 2.606 in N/A 3.250 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 2 x 3 N/A 2.106 in N/A 3.106 in N/A 4.850 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 2 1/2 x 3 N/A 2.606 in N/A 3.106 in N/A 4.850 in N/A Polypropylene N/A CAD Icon (for items table)
N/A MINI x MAXI N/A 0.750 in N/A 1.106 in N/A 3.000 in N/A PVDF N/A CAD Icon (for items table)
N/A MINI x 1 LADISH N/A 0.750 in N/A 1.106 in N/A 3.000 in N/A PVDF N/A CAD Icon (for items table)
N/A MINI x 1 1/2 N/A 0.750 in N/A 1.606 in N/A 3.000 in N/A PVDF N/A CAD Icon (for items table)
N/A MINI x 2 N/A 0.750 in N/A 2.106 in N/A 3.000 in N/A PVDF N/A CAD Icon (for items table)
