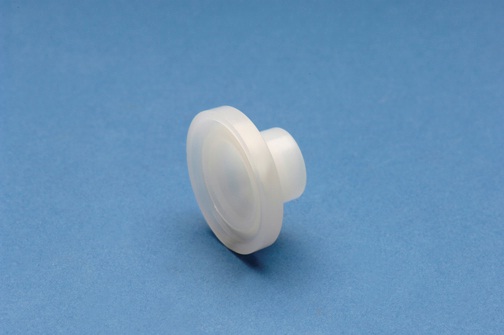

  • Sani-Tech® End Cap with FNPT Tap.jpg
  • End Cap with FNPT Tap-2
  • Use to connect MNPT components to a Sanitary system
  • Available in a wide range of sizes from 3/4" to 4"
  • Available in polypropylene or PVDF materials
1 - 25 of 108 | Results Per Page | View | Unit of Measure
1 2 3 4 5
Compare Items Search by Specification Add to CAD Cart

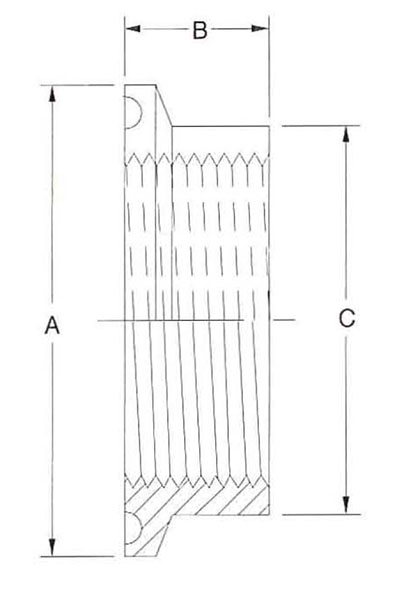

Item #

Tri-Clamp Size

FNPT

A

B

C

Material

CAD

N/A MINI N/A 1/8 N/A 0.992 in N/A 0.500 in N/A 0.750 in N/A Polypropylene N/A CAD Icon (for items table)
N/A MINI N/A 1/4 N/A 0.992 in N/A 0.500 in N/A 0.750 in N/A Polypropylene N/A CAD Icon (for items table)
N/A MAXI N/A 1/8 N/A 1.500 in N/A 0.500 in N/A 1.106 in N/A Polypropylene N/A CAD Icon (for items table)
N/A MAXI N/A 1/4 N/A 1.500 in N/A 0.500 in N/A 1.106 in N/A Polypropylene N/A CAD Icon (for items table)
N/A MAXI N/A 3/8 N/A 1.500 in N/A 0.500 in N/A 1.106 in N/A Polypropylene N/A CAD Icon (for items table)
N/A MAXI N/A 1/2 N/A 1.500 in N/A 0.500 in N/A 1.106 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 1 1/2 N/A 1/8 N/A 1.984 in N/A 0.500 in N/A 1.606 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 1 1/2 N/A 1/4 N/A 1.984 in N/A 0.500 in N/A 1.606 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 1 1/2 N/A 3/8 N/A 1.984 in N/A 0.500 in N/A 1.606 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 1 1/2 N/A 1/2 N/A 1.984 in N/A 0.500 in N/A 1.606 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 1 1/2 N/A 5/8 N/A 1.984 in N/A 0.500 in N/A 1.606 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 1 1/2 N/A 3/4 N/A 1.984 in N/A 0.500 in N/A 1.606 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 1 1/2 N/A 7/8 N/A 1.984 in N/A 0.500 in N/A 1.606 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 1 1/2 N/A 1 N/A 1.984 in N/A 0.500 in N/A 1.606 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 2 N/A 1/8 N/A 2.516 in N/A 0.500 in N/A 2.106 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 2 N/A 1/4 N/A 2.516 in N/A 0.500 in N/A 2.106 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 2 N/A 3/8 N/A 2.516 in N/A 0.500 in N/A 2.106 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 2 N/A 1/2 N/A 2.516 in N/A 0.500 in N/A 2.106 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 2 N/A 5/8 N/A 2.516 in N/A 0.500 in N/A 2.106 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 2 N/A 3/4 N/A 2.516 in N/A 0.500 in N/A 2.106 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 2 N/A 7/8 N/A 2.516 in N/A 0.500 in N/A 2.106 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 2 N/A 1 N/A 2.516 in N/A 0.500 in N/A 2.106 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 2 1/2 N/A 1/8 N/A 3.047 in N/A 0.500 in N/A 2.606 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 2 1/2 N/A 1/4 N/A 3.047 in N/A 0.500 in N/A 2.606 in N/A Polypropylene N/A CAD Icon (for items table)
N/A 2 1/2 N/A 3/8 N/A 3.047 in N/A 0.500 in N/A 2.606 in N/A Polypropylene N/A CAD Icon (for items table)
